■ 产品标准 Product Standard
GB/T12706.1-2002,等效采用IEC60502
GB/T12706.1-2002，equivalent to IEC60502
■ 用途 Usage
本产品适用于交流额定电压（U0/U）0.6/1kV系统的输配电线路
This product is sultable for use in rated AC voltage（U0/U）0.6/1kV system transmitting and distributing circuit.
■ 使用特性 Property for use
1. 既有远优于PVC绝缘电缆的所有特性指标，有克服了物理交联和其他化学交联的弊端，并且完全达到或超过了GB及IEC规定的技术特性值。
It is for better than all property targets of PVC insulated power cable and has overcome the short comings of physical and chemical cross-linkage,and completely reaches or surpasses GB and IEC technical property value.
2. 电缆导体最高允许工作温度为90℃；应急超载工作温度为130℃；短路时（5s）导体最高温度为250℃。
The allowed max. cable conductor work temperature is 90℃；urgent excess work temperature is 130℃ for short circult(5s),max. conductor temperature is 250℃.
3. 电缆敷设时的环境温度应不低于0℃，如在0℃一下敷设，应对电缆预热。
The environmental temperature for laying cable should be not less than 0℃,if alying under 0℃,the cable should be preheated.
4. 电缆弯曲半径为：单芯电缆不小于电缆外径的12倍；多芯电缆不小于电缆外径的10倍。
The cable bend radius for single core should be not less than 12 times of overall cable diameter；for multi-core cable,not less than 10 times of overall cable diameter.
5. 载流量大，敷设不受落差限制。
The current-carrying capacity is large and not limited by drop during layig.
■ 电缆的型号 Type of cable
|
型号 Type |
名称 Designation |
适用范围 Application |
|
YJV |
铜芯交联聚乙烯绝缘聚氯乙烯护套电力电缆 Copper conductor,XLPE insulated and PVC sheathed Electrical cable. |
室内、隧道及电缆沟等场所，不能承受机械外力。 For laying indoors,in tunnels or cable trench,unable to beer external mechanical forces. |
|
YJLV |
铝芯交联聚乙烯绝缘聚氯乙烯护套电力电缆 Aliuminium conductor,XLPE insulated and PVC sheathed Electrical cable. |
|
|
YJY |
铜芯交联聚乙烯绝缘聚乙烯护套电力电缆 Copper conductor,XLPE insulated and PE sheathed Electrical cable. |
|
|
YJLY |
铝芯交联聚乙烯绝缘聚乙烯护套电力电缆 Aliuminium conductor,XLPE insulated and PE sheathed Electrical cable. |
|
型号 Type |
名称 Designation |
适用范围 Application |
|
YJV22 |
铜芯交联聚乙烯绝缘钢带铠装聚氯乙烯护套电力电缆 Copper conductor,XLPE insulated,steel tape armoured and PVC sheathed Electrical cable. |
室内、隧道、电缆沟、直埋及易腐蚀场合，能承受机械外力的场所。 Indoors,tunnels,cable canal,vertically burying and easy to corrode places,can bear mechanical pressure. |
|
YJLV22 |
铝芯交联聚乙烯绝缘钢带铠装聚氯乙烯护套电力电缆 Aluminium conductor,XLPE insulated,steel tape armoured and PVC sheathed Electrical cable. |
|
|
YJV23 |
铜芯交联聚乙烯绝缘钢带铠装聚乙烯护套电力电缆 Copper conductor,XLPE insulated,steel tape armoured and PE sheathed Electrical cable. |
|
|
YJLV23 |
铝芯交联聚乙烯绝缘钢带铠装聚乙烯护套电力电缆 Aluminium conductor,XLPE insulated,steel tape armoured and PE sheathed Electrical cable. |
|
|
YJV32 |
铜芯交联聚乙烯绝缘细钢丝铠装聚氯乙烯护套电力电缆 Copper conductor,XLPE insulated,steel wire armoured and PVC sheathed Electrical cable. |
垂直敷设，可承受机械拉力，但不承受压力。 Vertically laying,can bear mechanlcal pulling force,but not pressure. |
|
YJLV32 |
铝芯交联聚乙烯绝缘细钢丝铠装聚氯乙烯护套电力电缆 Aluminium conductor,XLPE insulated,steel wire armoured and PVC sheathed Electrical cable. |
|
|
YJV33 |
铜芯交联聚乙烯绝缘细钢丝铠装聚烯护套电力电缆 Copper conductor,XLPE insulated,steel wire armoured and PE sheathed Electrical cable. |
|
|
YJLV33 |
铝芯交联聚乙烯绝缘细钢丝铠装聚乙烯护套电力电缆 Aluminium conductor,XLPE insulated,steel wire armoured and PE sheathed Electrical cable. |
■ 生产范围 Preduction Range of cable
|
型号 Type |
芯数 No. fo cores |
标称截面 Nominal cross-scetional area mm2 |
|
|
铜导体 Copper Conductor |
铝导体 Aluminium Conductor |
||
|
YJV YJY — YJV22 YJY23 |
— YJLV YJLV YJLV22 YJLV23 |
1* |
1.5～800 2.5～800 10～800 |
|
YJV YJY — YJV22 YJV23 YJV32 YJV33 |
— YJLV YJLY YJLV22 YJLV23 YJLV32 YJLV33 |
2 |
1.5～400 2.5～400 2.5～400 10～400 |
|
YJV YJY — YJV22 YJV23 YJV32 YJV33 |
— YJLV YJLY YJLV22 YJLV23 YJLV32 YJLV33 |
3 |
1.5～400 2.5～400 2.5～400 10～400 |
|
型号 Type |
芯数 No. fo cores |
标称截面 Nominal cross-scetional area mm2 |
|
|
铜导体 Copper Conductor |
铝导体 Aluminium Conductor |
||
|
YJV YJY — YJV22 YJV23 YJV32 YJV33 |
— YJLV YJLY YJLV22 YJLV23 YJLV32 YJLV33 |
4 |
1.5～400 2.5～400 2.5～400 10～400 |
|
YJV YJY — YJV22 YJV23 — YJV32 YJV33 |
— YJLV YJLY — YJLV22 YJLV23 YJLV32 YJLV33 |
3+1 |
1.5～400 4～400 1.5～400 4～400 10～400 |
|
YJV YJY — YJV22 YJV23 — YJV32 YJV33 |
— YJLV YJLY — YJLY22 YJLV23 YJLV32 YJLV33 |
5 |
1.5～400 2.5～400 1.5～400 2.5～400 10～400 |
|
YJV YJY — YJV22 YJV23 — YJV32 YJV33 |
— YJLV YJLY — YJLY22 YJLV23 YJLV32 YJLV33 |
4+1 |
1.5～400 4～400 1.5～400 4～400 10～400 |
|
YJV YJY — YJV22 YJV23 — YJV32 YJV33 |
— YJLV YJLY — YJLY22 YJLV23 YJLV32 YJLV33 |
3+2 |
1.5～400 4～400 1.5～400 4～400 10～400 |
注：单芯铠装电缆适用于直流系统，若用于交流系统，应采用非磁性材料铠装或隔磁措施。
The armoured single-core cables are used for d.c. system only.As for a.c. system,non-magnetic armour material should be used,or magnetic isolation should be applied.
■ 电缆参数 Product data table

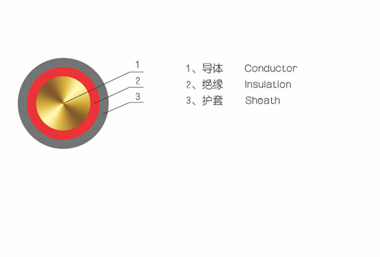

0.6/1kV单芯交联聚乙烯绝缘聚氯乙烯/聚乙烯护套电力电缆
1.6/1kV 1-Core,XLPE insulated PVC/PE Sheathed Power Cable
注：*表示紧压导体
*Compacted conductor

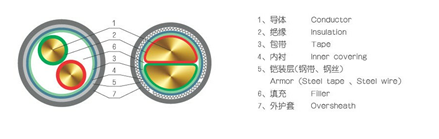

0.6/1kV两芯交联聚乙烯绝缘聚氯乙烯/聚乙烯护套电力电缆
0.6/1kV 2-Core，XLPE Insulated PVC/PE Sheathed Power Cable
注：*表示紧压导体
* Compacted conductor

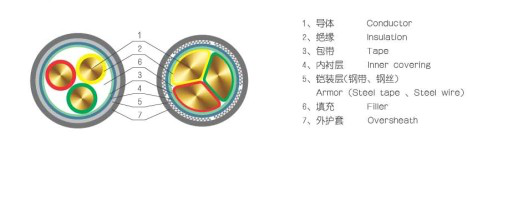

0.6/1kV三芯交联聚乙烯绝缘聚氯乙烯/聚乙烯护套电力电缆
0.6/1kV 3-Core,XLPE Insulated PVC/PE sheathed Power Cable
注：*表示紧压导体
* Compacted conductor

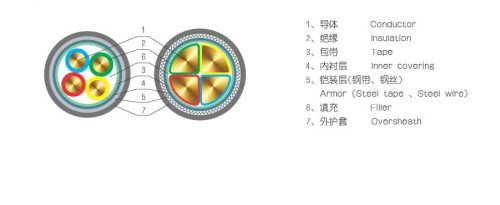

0.6/1kV四芯交联聚乙烯绝缘聚氯乙烯/聚乙烯护套电力电缆
0.6/1kV 4- Core,XLPE Insulated PVC/PE sheathed Power Cable
注：*表示紧压导体
* Compacted conductor

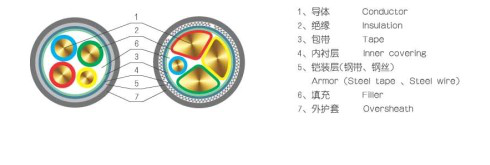

0.6/1kV三芯交联聚乙烯绝缘聚氯乙烯/聚乙烯护套电力电缆
0.6/1kV 3-Core,XLPE Insulated PVC/PE sheathed Power Cable
注：*表示紧压导体
* Compacted conductor

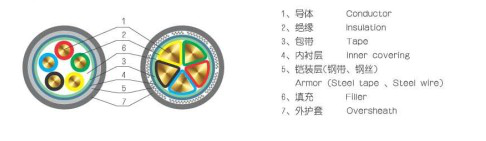

0.6/1kV五芯交联聚乙烯绝缘聚氯乙烯/聚乙烯护套电力电缆
0.6/1kV 5-Core,XLPE Insulated PVC/PE sheathed Power Cable
注：*表示紧压导体
* Compacted conductor

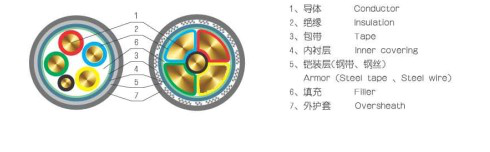

0.6/1kV 4+1芯交联聚乙烯绝缘聚氯乙烯/聚乙烯护套电力电缆
0.6/1kV 4+1-Core,XLPE Insulated PVC/PE Sheathed Power Cable
注：*表示紧压导体
* Compacted conductor

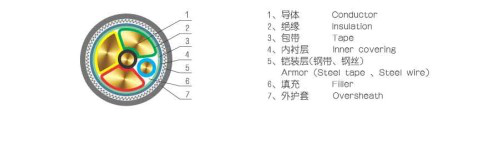

0.6/1kV 3+2芯交联聚乙烯绝缘聚氯乙烯/聚乙烯护套电力电缆
0.6/1kV 3+2-Core,XLPE Insulated PVC/PE Sheathed Power Cable
注：*表示紧压导体
* Compacted conductor
|
导体标称截面 Nominal Cross sectional area of conductor mm2 |
20℃时导体最大直流电阻（Ω/km） Max.D.C. resistance of conductor at 20℃ |
||
|
铜 Copper |
铝 Aluminium |
||
|
1 |
18.1 |
— |
|
|
1.5 |
12.1 |
— |
|
|
2.5 |
7.41 |
12.1 |
|
|
4 |
4.61 |
7.41 |
|
|
6 |
3.08 |
4.61 |
|
|
10 |
1.83 |
3.08 |
|
|
16 |
1.15 |
1.91 |
|
|
25 |
0.727 |
1.20 |
|
|
35 |
0.524 |
0.868 |
|
|
50 |
0.387 |
0.641 |
|
|
70 |
0.268 |
0.443 |
|
|
95 |
0.193 |
0.320 |
|
|
120 |
0.153 |
0.253 |
|
|
150 |
0.124 |
0.206 |
|
|
185 |
0.0991 |
0.164 |
|
|
240 |
0.0754 |
0.125 |
|
|
300 |
0.0601 |
0.100 |
|
|
400 |
0.0470 |
0.0778 |
|
|
500 |
0.0366 |
0.0605 |
|
|
630 |
0.0283 |
0.0469 |
|
|
800 |
0.0221 |
0.0367 |
|
|
工频交流电压试验 Power frequency A.C. voltage tset kV/5min |
试验电压3.5Kv/5min Test voltage 3.5kV/5min |
||
IEC推荐的载流量大为降低，截面选择宜适当放大。
The screen-coppeer-tape and steel wire (including all copper wire for magnetism seperation) of single-core steel wire armored power cable for AC system must be connectted to earth well and effectivity.
The current carying capacity is calculated by formulas of IEC.It is advised in the new edition of GB/T12706 that the current carrying capacity of steel wire armored power cable with special structure is lower than that in IEC standard,so the cross-section should be enlarged appopriately.
■电缆敷设运行条件 Installation and Operation Condition of Cable
在空气中敷设 In air
1. 单芯电缆平行敷设时中心距离：185mm2及以下为电缆直径的2倍；240mm2及以上为90mm。
2. 周围环境空气温度：30℃。
3. 导体的长期最高工作温度：90℃。
1. The distance between cable centers of single-core cables laid in paralled:cross sectional area of conductor ≤185mm2: 2 times of the cable diameter;cross-sectional area of conductor≥240mm2:90mm.
2. Ambient air temperature:30℃.
3. Max. contionous operating temperature of conductor:90℃.
不同环境温度下载流量的修正系数：
Current carrying rating factors for different ambient air temperature:
|
环境温度 Ambient air temperature |
20℃ |
25℃ |
30℃ |
35℃ |
40℃ |
45℃ |
|
修正系数 Rating factor |
1.09 |
1.04 |
1.00 |
0.95 |
0.90 |
0.84 |
直埋敷设 Direect in the ground
1. 单芯电缆不接触敷设时电缆中心距离为电缆直径的2倍。
2. 土壤温度：25℃
3. 导体的长期最高工作温度：90℃
4. 土壤热阻系数：1.0℃.m/W。
5. 直埋深度：0.7m。
1. The single-core cables are installed separately,the distance between the cable center is 2 times of the cablediameter.
2. Soil temperature:25℃
3. Max. contionous operating temperature of conductor:90℃.
4. Thermal resistivity of soil: 1.0℃.m/W.
5. Depth of Direct-buried:0.7m.
不同土壤温度下载流量的修正系数：
Current carrying rating factors for different soil temperature:
|
土壤温度 Soil temperature |
20℃ |
25℃ |
30℃ |
35℃ |
40℃ |
|
修正系数 Rating factor |
1.04 |
1.0 |
0.96 |
0..92 |
0.87 |
